LDH GAS : The company has a number of national patent certificates, computer soft certificate, and passed the EU CE certification and ISO9001 certification. The company focuses on scientific and technological innovation, cooperates with foreign counterparts, exchanges and cooperates with many domestic research institutions and universities.
active members
years experience
events & challenges
expert instructors
We are a professional manufacturer of oxygen , liquid nitrogen generator ,and various types of gas storage tanks. Our sales have covered many countries, such as Peru and Nicaragua in South America, Syria, Afghanistan, Mongolia in Asia, South America in Africa, Cameroon, Russia in Europe, etc. Our equipment has stable operation and sufficient production.
Our address：Room 1303, No.10 Building, No.10 Shuyuan South Street, Fangshan District, Beijing, China.
Phone Number：+86 18532696808
E-mail：suruihua@bjldh.com
Our product advantages
Choose the plan that suits you best.
Cost reduction directly
With a single investment, you will enjoy long-term benefits. The daily cost of liquid nitrogen can be reduced to 1/3 or even less of the cost of purchasing it externally.
01
Supply security
Products are available immediately upon production, with 7x24-hour continuous supply. The production plan is fully autonomous.
Risk controllable: By reducing the storage volume at the source and incorporating multiple safety protections, the operation becomes more secure.
02
Purity stability:
It can precisely and stably output according to process requirements (such as 99.5% to 99.999%), ensuring quality.
Intensive Design
The equipment is highly integrated, with a compact layout, effectively saving space.
03
Core value

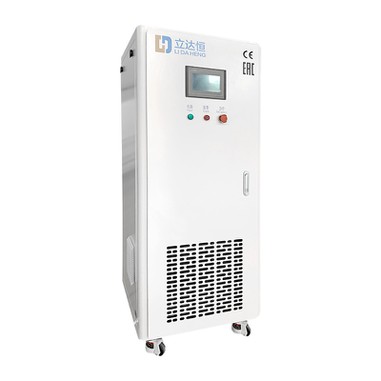

The liquid nitrogen machine is a high-tech equipment that can directly separate air and liquefy it, continuously producing low-temperature liquid nitrogen gas (-196℃). It is like a "mini chemical plant" built within your factory, enabling the "self-production and self-use" of nitrogen and completely eliminating the reliance on external suppliers.
04
Work process and simple principles
Choose the plan that suits you best.
Air compression and purification
The ambient air is compressed by the compressor, and then passes through a precision filter to remove moisture, oil, and dust.
Air pre-cooling
The compressed air undergoes heat exchange with the produced low-temperature nitrogen in the heat exchanger, achieving an initial cooling effect.
Deep freezing and distillation
The pre-cooled air enters the core component and undergoes rapid expansion for refrigeration, causing the air to liquefy and be purified.
Liquid nitrogen collection
The high-purity nitrogen is liquefied and output in a liquid form at -196℃, which can be directly filled into liquid nitrogen tanks or transported to the usage point.
Widely applied fields
1,Food industry: Fresh produce/shellfish preservation, beverage filling, snack nitrogen packaging, liquid nitrogen quick freezing (ice cream, steak, etc.).
2,Electronic industry: SMT reflow soldering, semiconductor component packaging, LED manufacturing.
3,Pharmaceutical and biological: Pharmaceutical nitrogen packaging, vaccines and biological sample cryogenic storage (with liquid nitrogen tanks), biological fermentation.
4,Chemical new materials: Chemical process protection, powder metallurgy, metal heat treatment, rubber and plastic low-temperature grinding.
| Mode | LPLN-10 | LPLN-20 | LPLN-40 | LPLN-80 | LPLN-120 | LPLN-240 | LPLN-480 | LPLN-720 | LPLN-960 | LPLN-1200 |
| Capacity | 0.3-0.4L/H | 0.8-1L/H | 1.6-2L/H | 3L/H | 5L/H | 10L/H | 20L/H | 30L/H | 40L/H | 50L/H |
| 8-10L/day | 20-24L/day | 40-50L/day | 72L/day | 120L/day | 240L/day | 480L/day | 720L/day | 960L/day | 1200L/day | |
| Purity | ≥99% | ≥99% | ||||||||
| Votage | 220VAC | 380VAC 3P 50Hz | 380VAC 3P 50Hz | |||||||
| 1P | 220VAC 1P 50Hz | 220VAC 1P 50Hz | ||||||||
| 50Hz | ||||||||||
| Power(KW) | 2 | 4.5 | 7.5 | 12.5 | 15 | 27 | 45 | 55 | 84 | 92 |
| Area | 1 | 1.5 | 3 | 3.5 | 3.5 | 10 | 30 | 30 | 40 | 40 |
| Size | 750*650*1500 | 1150*850*2000 | 1250*2000*2000 | 1250*2000*2000 | 1250*2000*2000 | 6000*1100*2200 | 8000*1700*2300 | 8000*1700*2300 | 12000*1800*2350 | 12000*1800*2350 |
| Ambient temperature | 0-30ºC | 0-30ºC | ||||||||
| Noise(dB) | <50Db | <50Db | <50Db | <50Db | <55Db | <72Db | <78Db | <78Db | <78Db | <78Db |
We trusted by
Our Service
Pursuing perfect pre-sale and after-sale services
01
Pre-sale service
Professional Pre-Sales Consultation: Engineers conduct free on-site inspections and tailor the most cost-effective solutions for you.
02
Installation service
Comprehensive Technical Training: On-site installation and commissioning, along with comprehensive training for your operators.
03
After-sales service
Complete After-Sales System: Provide 12-month whole machine warranty, 7x24-hour technical support, quick response, ensuring your production is worry-free.
