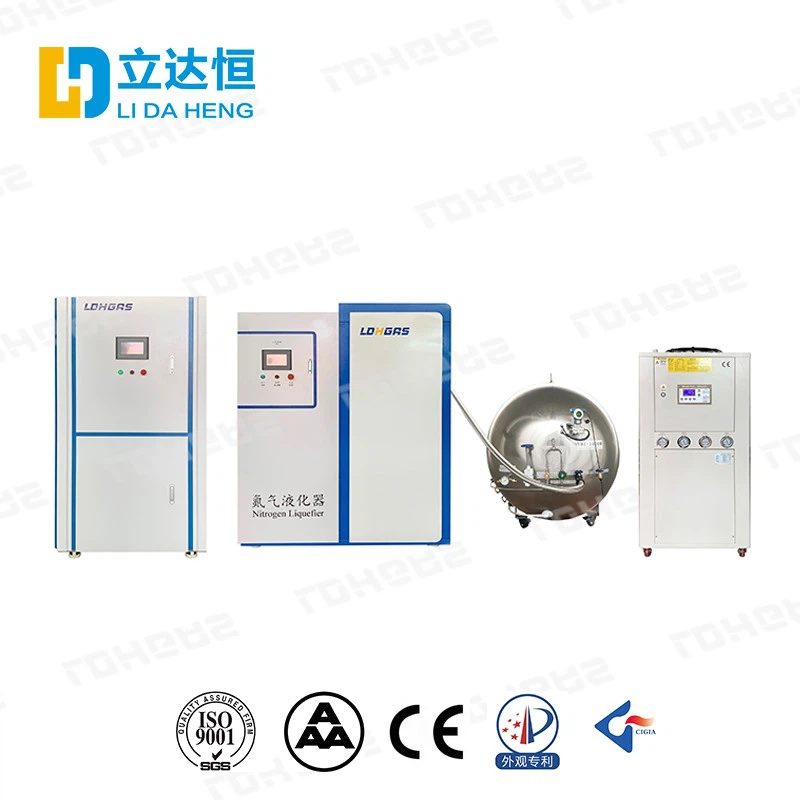

This liquid nitrogen generator delivers core performance: 10L/h output, 240L daily capacity, and customizable purity ranging from 99% to 99.995%. The nitrogen production unit is integrated into a single cabinet, while the liquefier features a standalone enclosure-offering a sleek design and compact footprint. Paired with a dedicated chiller for liquefier cooling, the system ensures stable operation and low failure rates. For 24/7 uninterrupted production, customers can opt for an optional 500L self-pressurizing storage tank, maintaining a minimum daily output of 240L. Equipped with liquid level-triggered start/stop, timed operation, and remote control functions, it boosts operational efficiency to meet diverse customer requirements.
|
Model |
LPLN - 240 - 999 |
|
Output |
10L/hour (240L/day) |
|
Purity |
≥99% (customized 99-99.9995%) |
|
Voltage - Frequency |
380VAC 3P 50Hz |
|
Power (KW) |
27 |
|
Floor Area (m²) |
10 |
|
Equipment Size (mm) |
Nitrogen generator：1410*1400*2030mm Nitrogen liquefier：1820*1080*2000mm Chiller：1300*750*450mm |
|
Required Room Area (m²) |
>30 |
|
Ambient Temperature Requirement |
0 - 30°C with good ventilation |
|
Noise at 1m (dB) |
<72dB |
|
Nitrogen Volume (m³/h) |
15 |
|
Nitrogen Dew Point (°C) |
- 60°C |
|
Nitrogen Pressure (Mpa) |
0.8 |
|
Recommended Liquid Nitrogen Tank Capacity (L) |
500 |
The above model parameters are for reference only. The actual results will depend on the production outcome. Other models can be customized professionally. Depending on factors such as purity, production capacity, voltage frequency, and altitude, the accessories need to be adjusted to achieve the best results. Please contact us!
